CNC Turning Solutions — Precision Machining Every Part
Whether it’s complex geometry or high-precision mating parts, we can meet your design needs with superior machining accuracy, consistent quality, and cost-effectiveness.
Through CNC turning, we can achieve efficient mass production of cylinders, cones, disks, hexagons, polygons, and various axisymmetric parts.
- ⚙️ High Precision Tolerance Control: Turning accuracy up to ±0.005–0.01mm
- 🚀 Fast Delivery Cycle: Samples delivered in as little as 3 days
- 🔒 Confidentiality and Quality Assurance: Strict adherence to the ISO9001 system; customer data is encrypted throughout the entire process.
- 📈 High-Efficiency Mass Production Capability: Seamless transition from prototyping and small-batch production to large-scale machining.
CNC turning solutions
Cylindrical Turning
A process that removes material along the workpiece to form a precise cylindrical shape, ensuring uniform diameter and smooth surface finish.

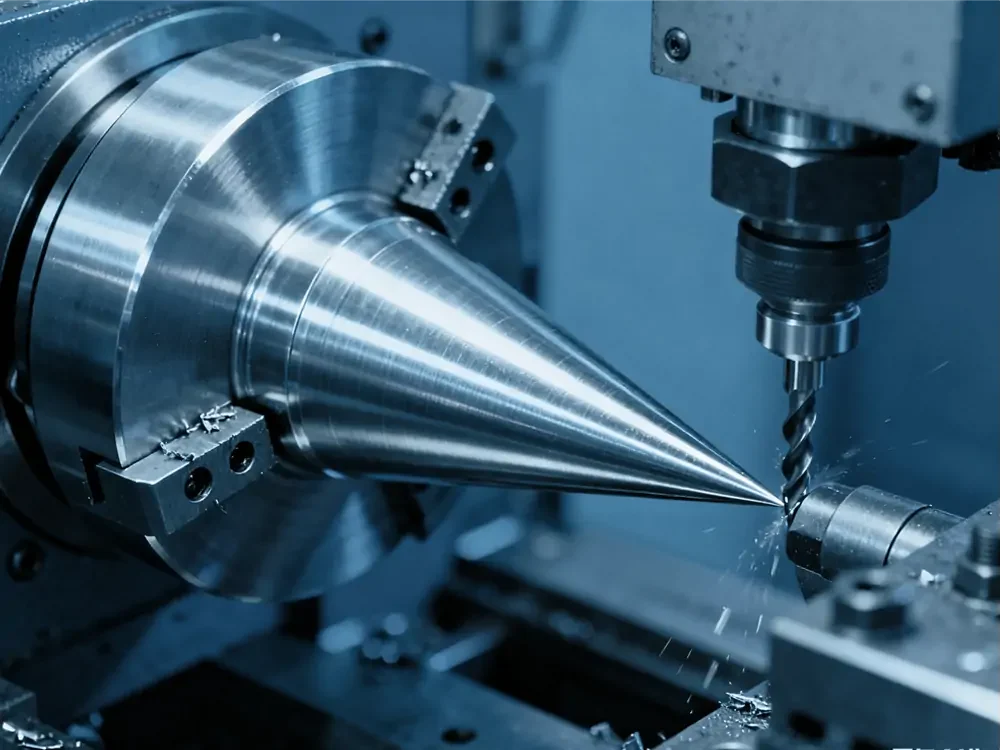

Taper Turning
Used to produce a conical surface where the diameter gradually decreases along the workpiece axis, ideal for shafts and fittings.

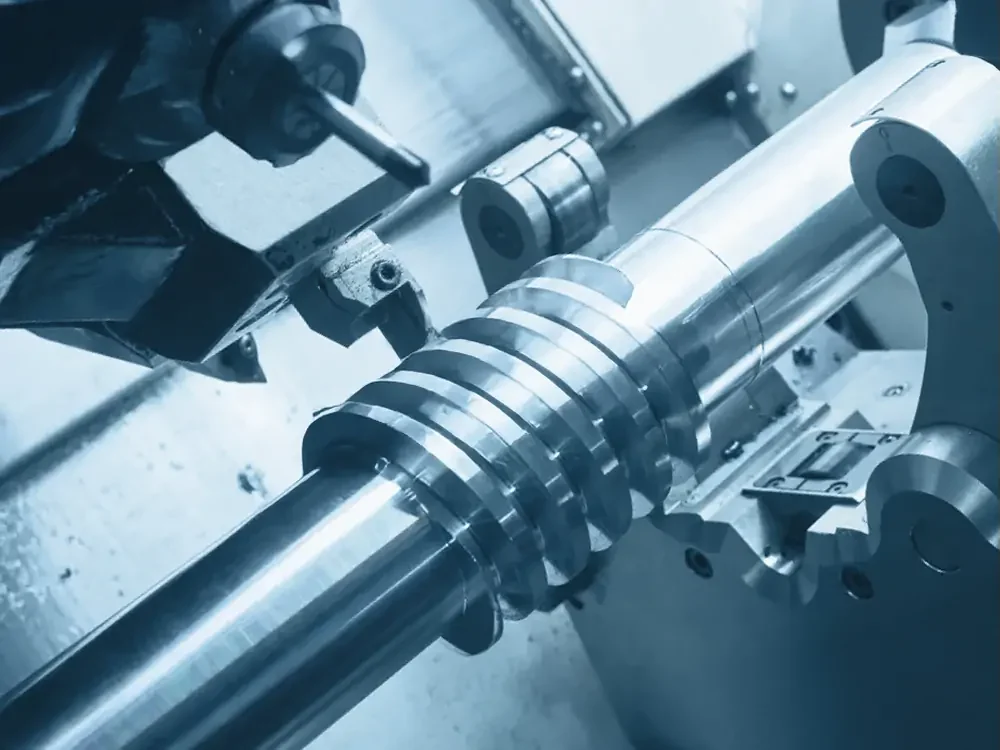

Grooving
Creates narrow grooves or recesses on the outer or inner surfaces of parts for sealing, fitting, or retaining functions.

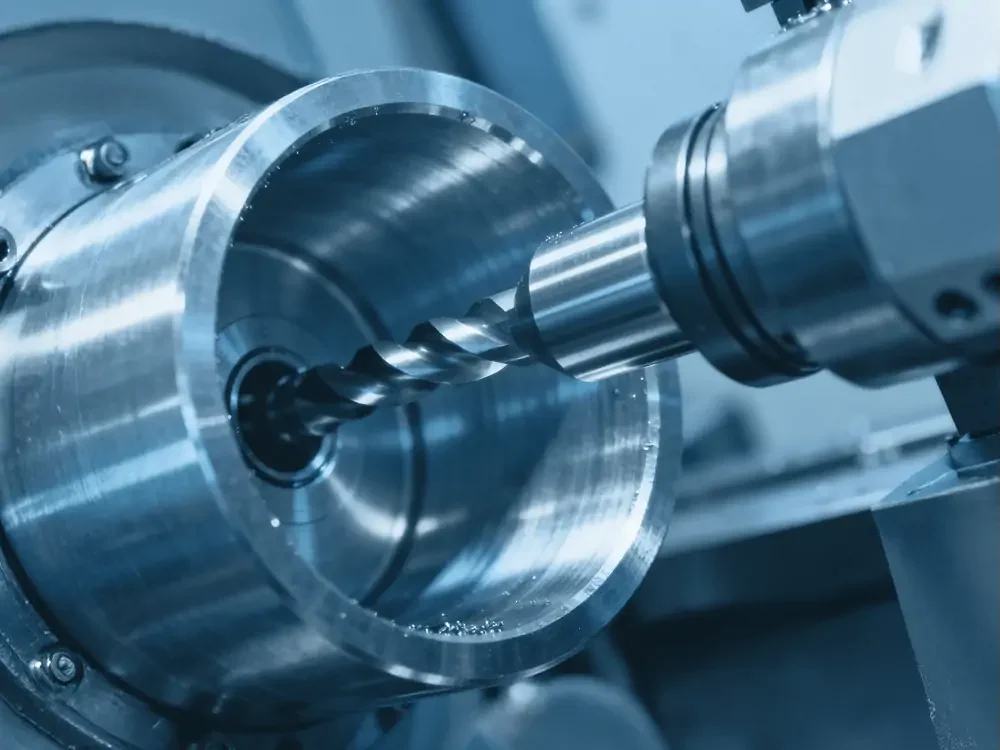

Boring
Used to enlarge or refine existing holes to precise diameters with tight concentricity control.
Our Capabilities and Advantages
Tolerance Control
Turning accuracy up to ±0.005–0.01mm, with 100% inspection of critical dimensions to ensure consistent precision and perfect fit.
Precision Inspection
CMM, projectors, roughness testers, and gauges ensure full dimensional and surface quality verification.
One-Stop Integration
Turning, milling, drilling, tapping, and surface finishing all completed in-house, minimizing errors and communication gaps.
Engineering Support (DFM)
Provides design optimization and manufacturability analysis to improve prototyping success and production reliability.
Quality Control
Certified ISO9001 system with full traceability from materials to shipment for consistent quality.
Cost Efficiency
Multi-machine and turn-mill setup complete multiple processes in one run, saving time and cost.
Fast & Stable Delivery
10-minute response, 3-day prototyping, 7–10-day batch delivery — fast and flexible turnaround.
Multi-Industry Experience
Trusted by electronics, automotive, medical, and automation sectors, familiar with global standards.
Manufacturing Strength & Equipment Capability
Our advanced manufacturing facilities are equipped with state-of-the-art CNC turning centers, turn-mill compound machines, and automated inspection systems.
Our key equipment and capabilities include:
- Multi-axis CNC Turning Centers: Support complex geometries and simultaneous operations.
- Turn-Mill Compound Machines: Achieve turning, milling, and drilling in one setup to improve efficiency.
- CMM & Optical Measurement Systems: Guarantee precise dimensional inspection and quality traceability.
- Wide Material Compatibility: Stainless steel, brass, aluminum, titanium, and engineering plastics.
Technical Specifications Snapshot
| Category | Parameter | Specification / Capability | Notes |
| Machining Range | Max Turning Diameter | Ø1–Ø200 mm | Can be adjusted according to actual machine limits |
| Max Length | ≤ 300 mm | Depends on workholding and tooling setup | |
| Precision & Accuracy | Dimensional Tolerance | ±0.005–0.01 mm | Varies by material, structure, and length; 100% inspection for key dimensions |
| Coaxiality / Concentricity | ≤ 0.01–0.03 mm | Affected by structure and clamping | |
| Roundness / Cylindricity | ≤ 0.01–0.03 mm | Typical range, verified upon request | |
| Surface Quality | Surface Roughness | Ra 0.8–3.2 μm | Depends on material and tooling finish |
| Deburring & Chamfering | As per drawing / R0.2–0.5 default | Optional sharp edge protection or full chamfer | |
| Thread Machining | Thread Type | Internal / External; Metric / Imperial / Pipe / Custom | Metric, UNC, UNF, G, BSP, NPT available |
| Thread Class | 6H / 6g (or 2A / 2B / 3A / 3B) | Thread gauges available for verification | |
| Material Capability | Metals | Aluminum (6061 / 7075), Stainless Steel (303 / 304 / 316 / 17-4), Brass, Copper, Alloy Steel, Titanium | Other alloys upon request |
| Engineering Plastics | POM, PA, PEEK, PTFE, ABS, PC | Material choice depends on application | |
| Surface Treatment | Finishing Options | Anodizing, Hard Anodizing, Sandblasting, Polishing, Nickel / Zinc Plating, Black Oxide, Passivation | Salt spray / coating thickness reports available |
| Inspection & Traceability | Inspection Equipment | CMM, Projector, Surface Roughness Tester, Thread / Plug / Ring Gauges, Concentricity Tester | CoC, FAI, and material / plating reports available |
| Production Capability | Batch Size | 1–50 pcs for prototype; 50–50,000+ pcs for mass production | Multi-machine setup and turn-mill integration |
| Lead Time | 3–5 days for samples; 7–10 days for production | Depends on complexity and drawing | |
| Data & Confidentiality | File Formats | STEP, IGES, Parasolid, DWG, DXF, PDF | NDA supported; full data encryption during transfer |
| Assembly & Packaging | Packaging | Rust-proof / Vacuum-sealed / Individual compartments / Traceable labeling | Compliant with export and logistics standards |
Ready to start your CNC turning project?
Fill out the form and we’ll provide manufacturability advice and a quote within 12 hours.
